SDS Plus Zentro Series

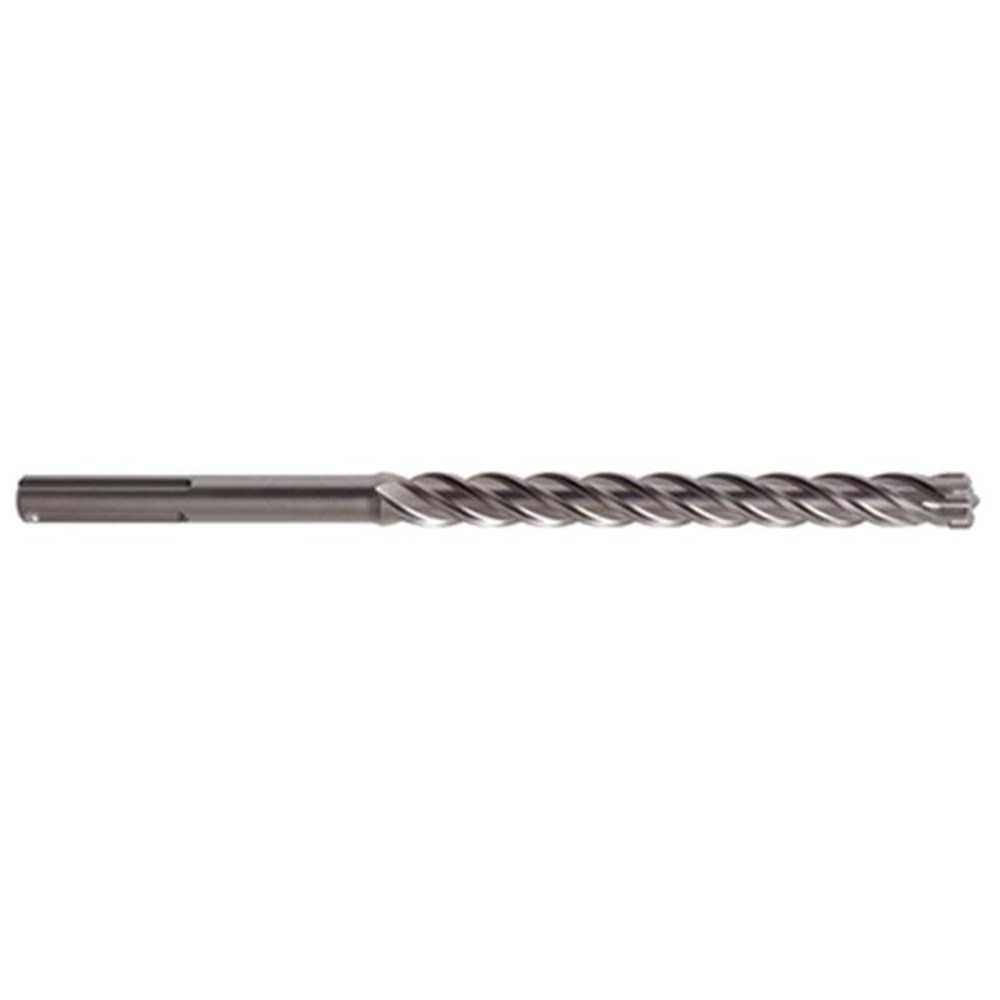

12.0 x 260mm SDS Plus German Zentro 4 Cutter Masonry Drill

Product Code: SPZ120260

Key Features
Dynamic drilling ability with secondary cutters protecting the drill bit in the event of reinforcement collision
The one-piece, solid carbide tip and patented reinforcing chamfering ensure low vibration and optimum drilling performance when drilling into reinforcing steel

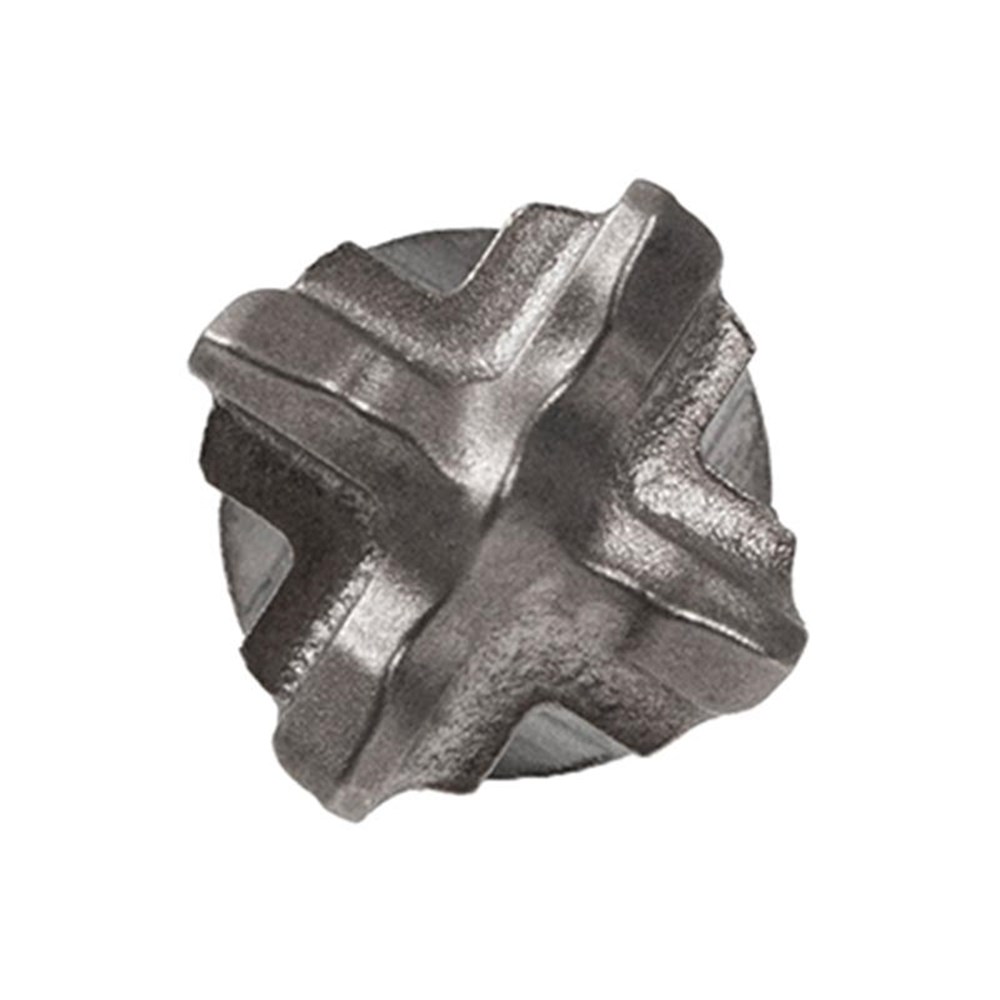

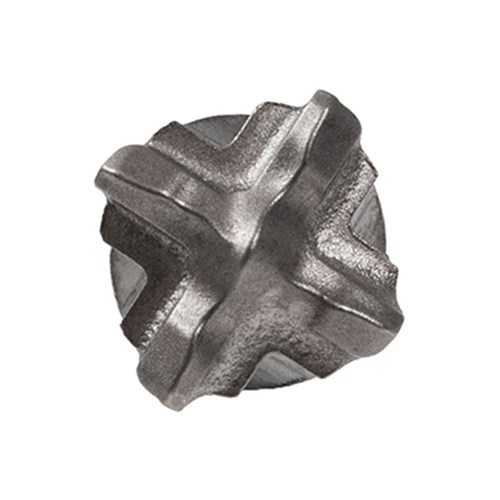

Thanks to optimum 4 x 90 Deg symmentry, all four carbide cutting edges function evenly and do not seize up on hitting reinforcing steel
Laterial support and maximum possible area of the interface between the carbide and steel body compensate fortorsional forces
Centring tip for straight forward spot drilling with pinpoint accuracy
Login to view pricing
Technical Specifications
Brand ALPHA
Subcategory SDS Plus Zentro Series
Series Zentro
Diameter (mm) 12
Flute Length (mm) 200
Head Type 4 Cut
OAL (mm) 260
Shank Type SDS
Barcode 9342386020045
Category SDS Plus Zentro Series
Weight (gr) 135.00
Box Quantity 30.00
Carton Quantity 30.00
Order Quantity 1
Unit Of Measure
Box: 30
Carton: 30
  • Dynamic drilling ability with secondary cutters protecting the drill bit in the event of reinforcement collision
  • The one-piece, solid carbide tip and patented reinforcing chamfering ensure low vibration and optimum drilling performance when drilling into reinforcing steel
  • Thanks to optimum 4 x 90° symmentry, all four carbide cutting edges function evenly and do not seize up on hitting reinforcing steel
  • Laterial support and maximum possible area of the interface between the carbide and steel body compensate for torsional forces
  • Centring tip for straight forward spot drilling with pinpoint accuracy

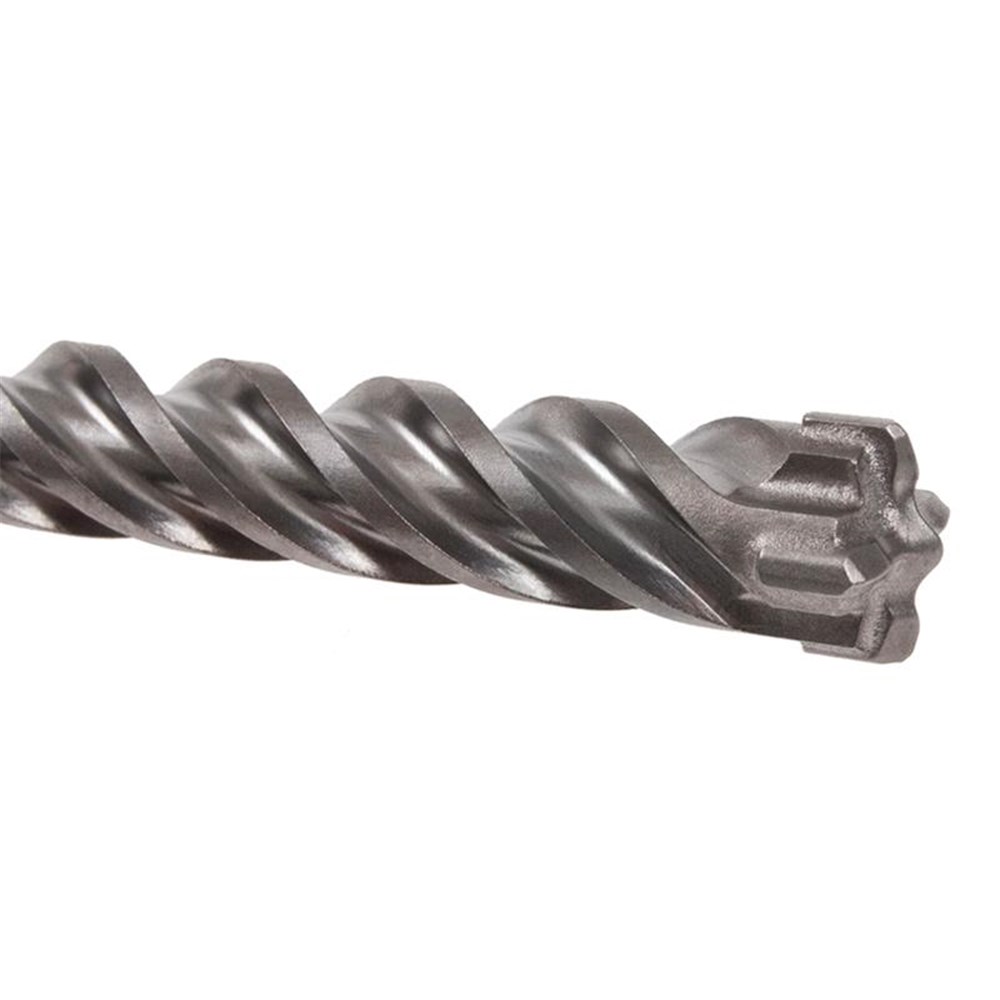

  • Four symmetrically functioning spiral ridges ensure low, uniform flute wear
  • Optimised flute core strength ensures low vibration drilling performance and exceptional fracture resistance
  • The high-volume flute geometry ensures the optimum removal of drilling dust
  • 4 Cutter head prevents seizing when drilling through reinforcing steel
  • Penetrates through steel deck plate eg Bondek® and concrete in one easy process
