UNC Carbon

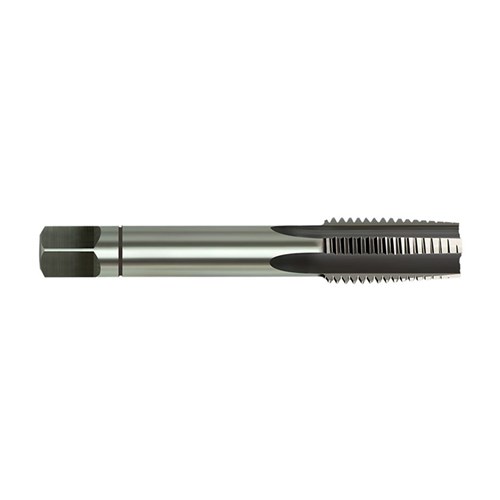

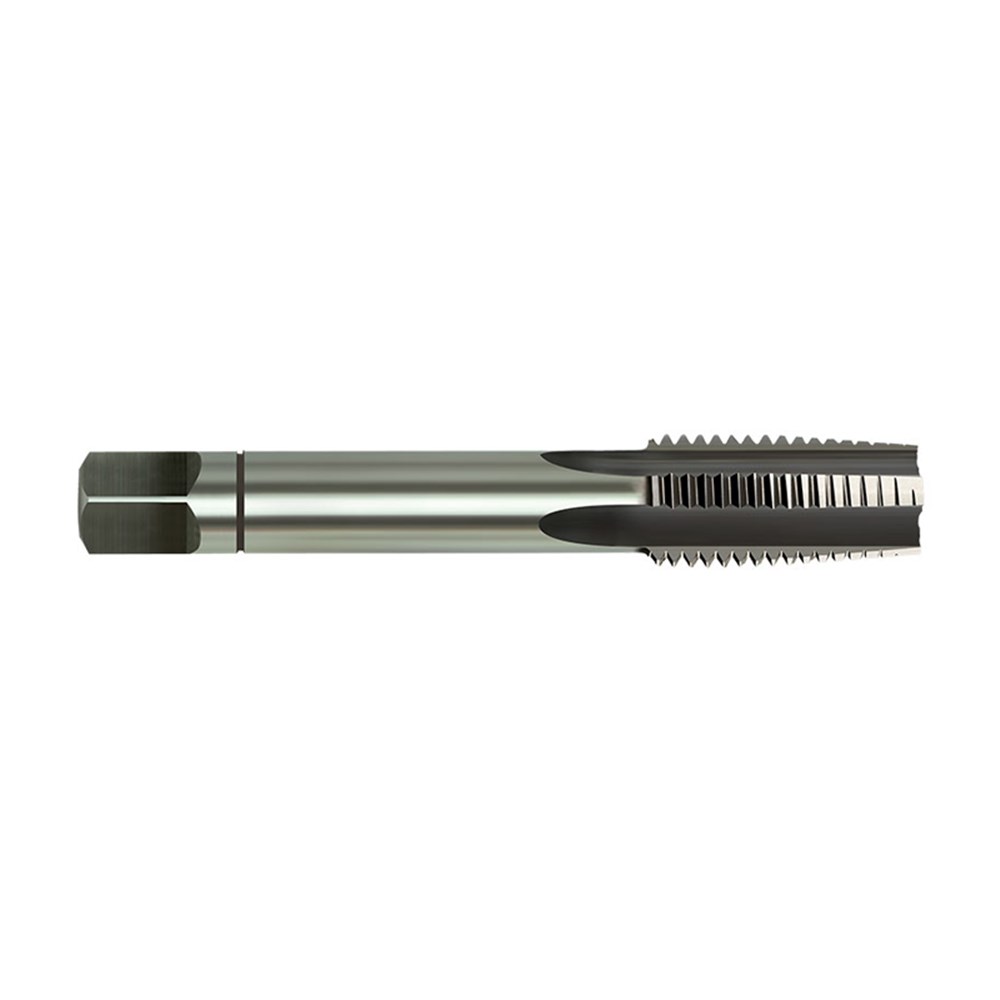

Carbon Tap UNC Taper-1/2x13

Product Code: UNCCT12

Key Features
Precision manufactured in Europe to ISO529 standards
Suitable for hand and machine operation, and are suitable for production
2N Tolerance for optimum thread fit
Login to view pricing
Technical Specifications
Brand ALPHA
Subcategory UNC Carbon
Diameter (in) 1/2
Type of Measure UNC
Head Type Taper
Material Carbon
TPI 13
Barcode 9342386031393
Category UNC Carbon
Weight (gr) 50.00
Carton Quantity 1.00
Order Quantity 1
  • Alpha Carbon Hand Taps are precision manufactured in Europe to ISO529 standards.
  • Carbon Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.
  • 2N Tolerance for optimum thread fit that balances fastener performance, manufacturing, economy and convenience.
  • Suitable for use in Steel, Aluminium, Copper, Brass etc.
  • Always use lubricant. Click here for our range.

TAPER taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes. Alpha Taper taps can be identified by the single ring on the shaft near the driving square.

  • Diameter: 1/2mm
  • Pitch: 13mm
  • Overall length: 75mm
  • Shaft Diameter: 9mm
  • Drive Square: 7mm
  • Tapping Drill Size: 10.75mm
