UNC HSS

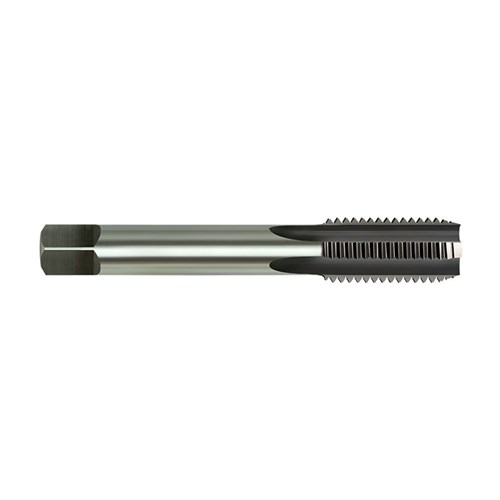

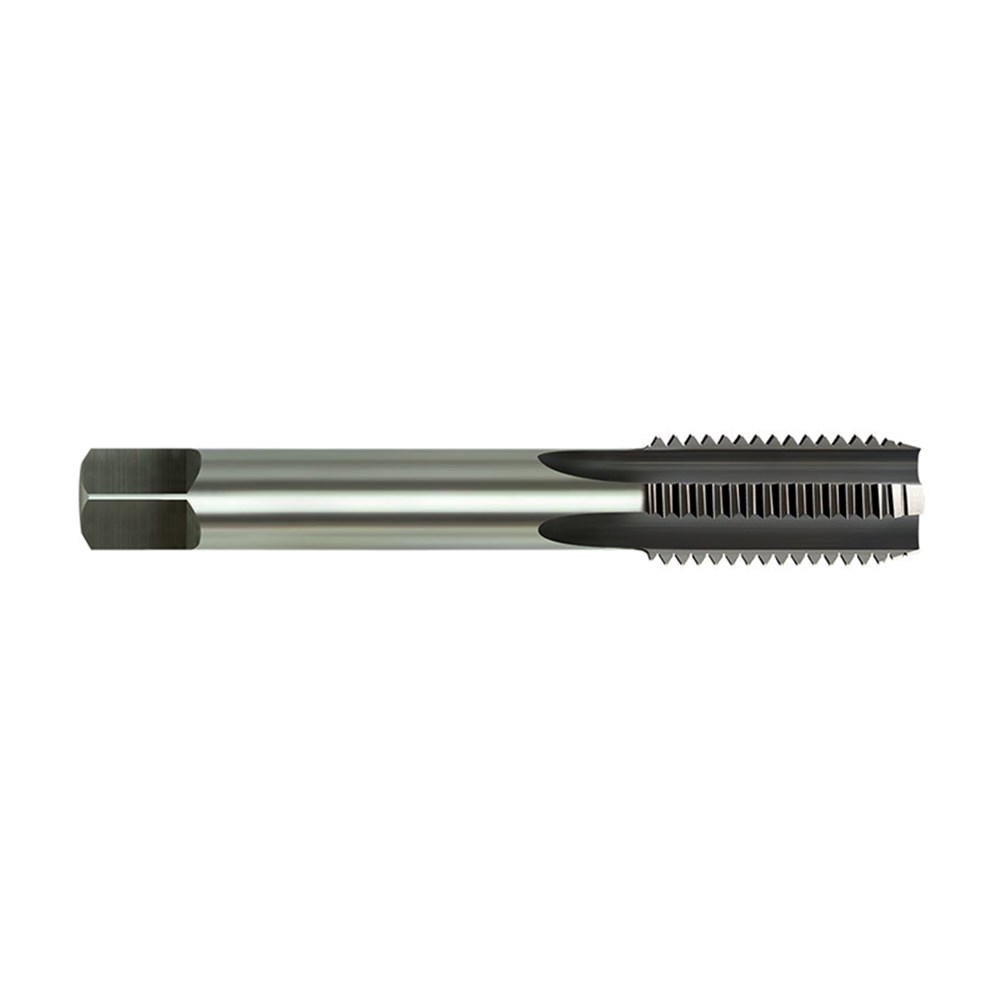

HSS Tap UNC Bottoming-9/16x12

Product Code: UNCHB916

Key Features
Precision manufactured in Europe to ISO529 standards
Suitable for hand and machine operation, and are suitable for production
2N Tolerance for optimum thread fit
Login to view pricing
Technical Specifications
Brand ALPHA
Subcategory UNC HSS
Diameter (in) 9/16
Type of Measure UNC
Drill Size (mm) 12.2
Head Type Bottoming
Material HSS
OAL (mm) 95
TPI 12
Barcode 9342386039023
Category UNC HSS
Weight (gr) 70.00
Order Quantity 1
  • Alpha HSS Hand Taps are precision manufactured in Europe to ISO529 standards.
  • HSS Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.
  • 2N Tolerance for optimum thread fit that balances fastener performance, manufacturing, economy and convenience.
  • Suitable for use in Steel, Aluminium, Copper, Brass etc.
  • Always use lubricant. Click here for our range.

BOTTOMING taps have a lead of two threads and are used when tapping blind holes. Usually preceded by a taper or intermediate tap. Alpha bottoming taps can be identified by their plain shaft, they have no rings on the shaft near the driving square.

  • Diameter: 9/16mm
  • Pitch: 12mm
  • Overall length: 80mm
  • Shaft Diameter: 11mm
  • Drive Square: 9mm
  • Tapping Drill Size: 12.25mm
