UNF HSS

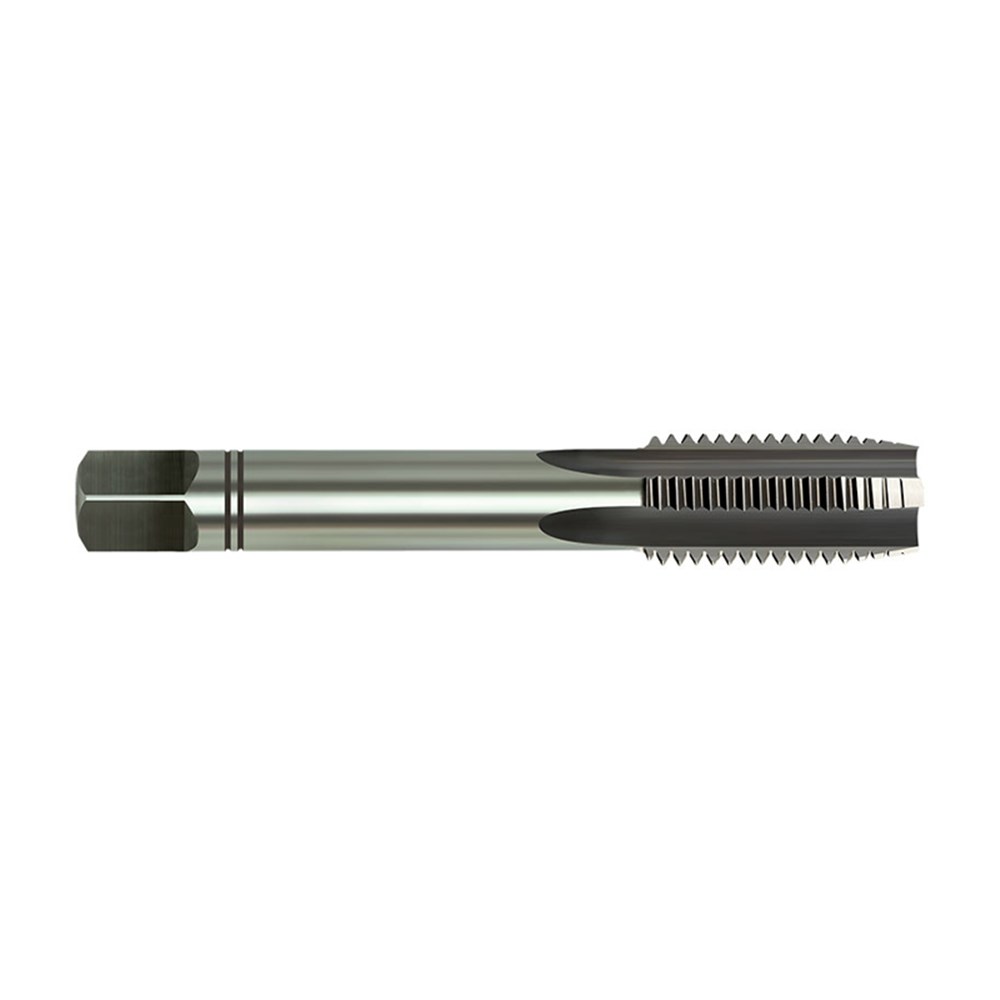

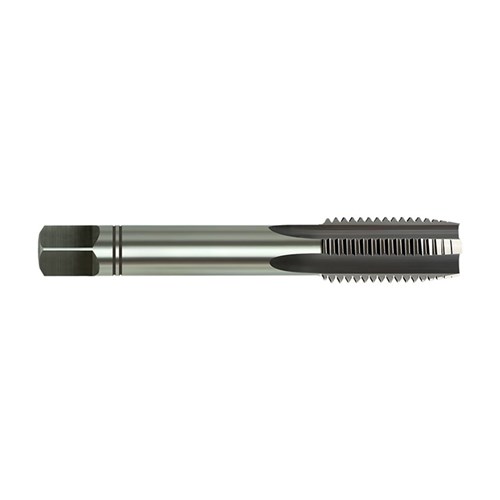

HSS Tap UNF Intermediate-1x12

Product Code: UNFHI1

Key Features
Precision manufactured in Europe to ISO529 standards
Suitable for hand and machine operation, and are suitable for production
2N Tolerance for optimum thread fit
Login to view pricing
Technical Specifications
Brand ALPHA
Subcategory UNF HSS
Diameter (in) 1
Type of Measure UNF
Head Type Intermediate
Material HSS
TPI 12
Barcode 9342386039634
Category UNF HSS
Weight (gr) 240.00
Carton Quantity 1.00
Order Quantity 1
  • Alpha HSS Hand Taps are precision manufactured in Europe to ISO529 standards.
  • HSS Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.
  • 2N Tolerance for optimum thread fit that balances fastener performance, manufacturing, economy and convenience.
  • Suitable for use in Steel, Aluminium, Copper, Brass etc.
  • Always use lubricant. Click here for our range.

INTERMEDIATE taps have a lead of four threads and are used in most general purpose applications. Alpha Intermediate taps can be identified by the two rings on the shaft near the driving square.

  • Diameter: 1mm
  • Pitch: 12mm
  • Overall length: 80mm
  • Shaft Diameter: 18mm
  • Drive Square: 14.5mm
  • Tapping Drill Size: 23.25mm
